Equipment
MACHONE System
Advanced sound-based inspection technology for ultra-fast tube analysis
Click to view full size
Sound Wave Inspection Systems
MACHONE Tube Inspection System - Advanced Sound-Based Technology
About Sound Wave Inspection Systems (SWIS)
At Sound Wave Inspection System (SWIS), we use advanced sound-based technology to inspect tubes in just 3 seconds each, enabling full system inspections with minimal downtime, and efficient defect detection is essential.
This is a fast inner diameter inspection system for heat exchangers, revolutionizing traditional inspection methods with ultra-fast, non-invasive technology.
Technology Features
Revolutionary sound-based inspection technology delivering unprecedented speed and accuracy
Ultra-fast Inspection
3 seconds per tube inspection
Non-invasive Technology
Extremely fast, non-invasive inspection process
Precise Detection
Detect 0.25mm hole, 2% blockage, and 20% wall loss
Extended Range
Up to 40m leak detection (80m from both sides)
Technical Specifications
Comprehensive technical capabilities for diverse inspection requirements
Inspection Speed
3 seconds per tube
Detection Range
Up to 40m (80m both sides)
Diameter Range
7mm to 76mm (3 inches)
Minimum Detection
0.25mm hole, 2% blockage
Material Compatibility
Ferromagnetic metals
Non-ferromagnetic metals
Graphite
Plastics
Tube Configurations
Straight tubes
U-bends
Fin-fans
Twisted tubes
Spiral wound tubes
Key Benefits
Addressing critical operational challenges with innovative solutions
Minimal Downtime
Full system inspections with minimal operational disruption, preventing costly downtime that often results from traditional inspection methods.
Efficient Detection
Advanced sound-based technology enables efficient defect detection, ensuring critical issues are identified quickly and accurately.
Equipment Gallery
Advanced sound-based inspection technology and equipment for comprehensive tube analysis
Technology

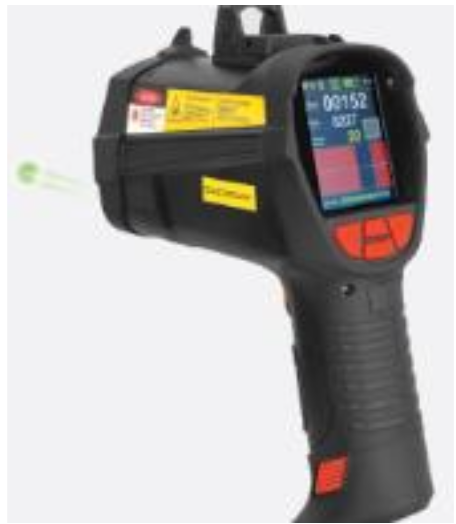

Inspection Technology
Precision defect detection system for heat exchanger tubes
Click to view full size
Analysis

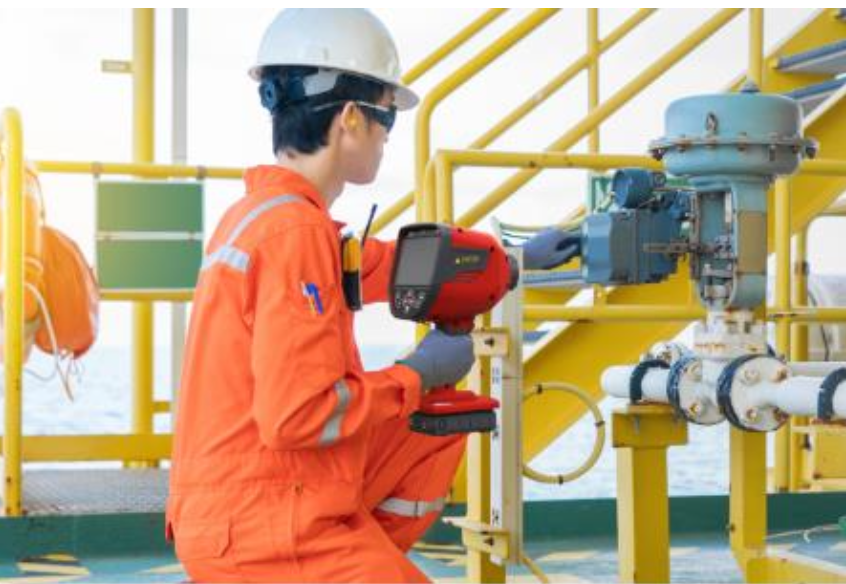

Analysis System
Non-invasive inspection system with 3-second per tube capability
Click to view full size
